Mining Pumpsets
Remko delivers heavy-duty pumpset packages engineered for the mining industry, where reliability, durability, and high performance are essential. Our mining pumpsets are purpose-built to handle the most demanding dewatering and water management challenges across open-cut and underground sites.
Browse Packaged Pumpsets
M600 Mining Skid Pumpset
Compact Mine Spec Package
Entry-level mine specification diesel pumpset on a heavy-duty 600L fuel tank skid. Ideal for smaller dewatering duties and dust suppression where space is limited.
2800x1145x400mm heavy-duty fuel tank skid with 600L diesel fuel capacity. Forklift pockets, lockable battery box, E-stop, fire extinguisher, telemetry-ready controller.
Heavy-Duty Fuel Tank Skid with integrated 600L fuel tank.nForklift Pockets for easy site relocation.nSafety Features including lockable battery isolator, E-stop, fire extinguisher.nExhaust Heat Shield protects personnel.nTelemetry Ready with pre-wired remote monitoring.nNudge Bar for front protection.

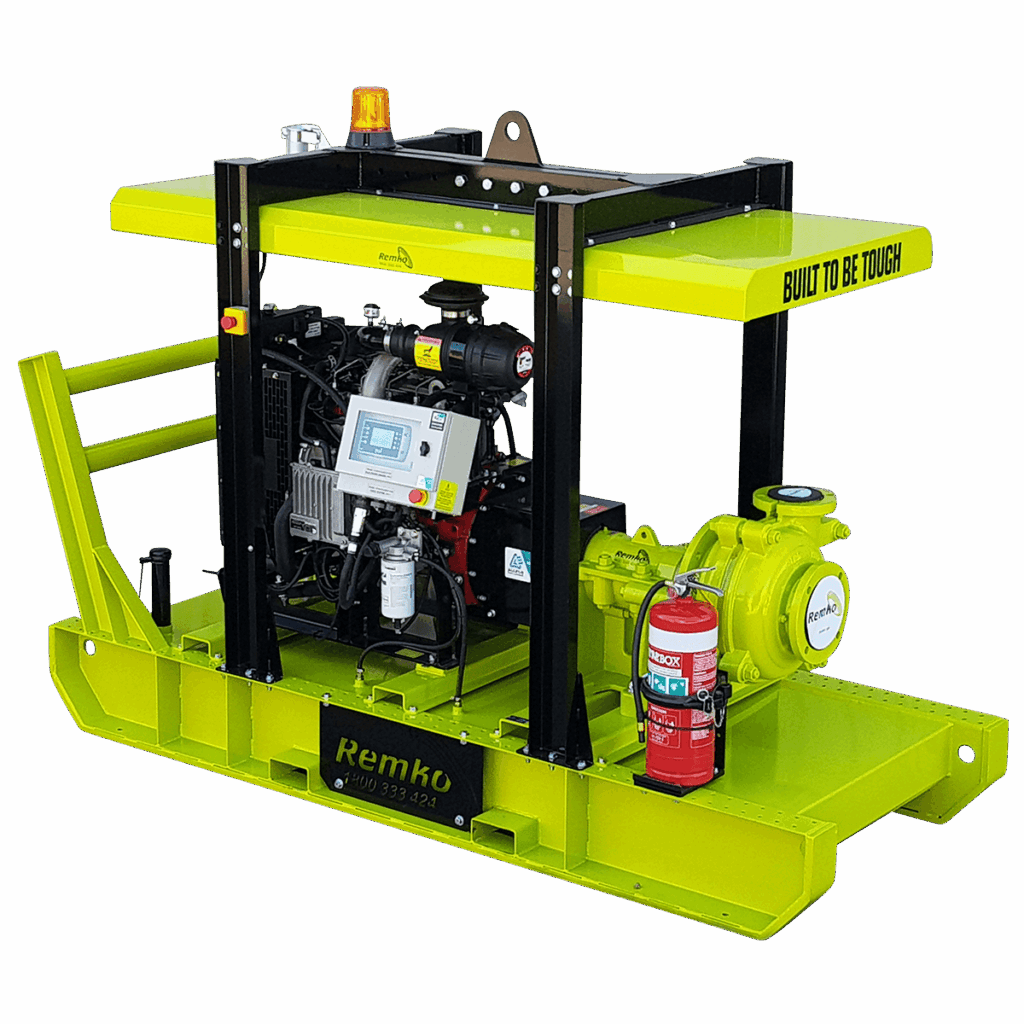

M1200 Mining Skid Pumpset
Standard Mine Spec Package
Standard mine specification diesel pumpset with 1200L fuel capacity and 2-post lifting frame. Built for extended runtime between refuelling on active mine sites.
3200x1720x400mm heavy-duty fuel tank skid with 1200L diesel fuel capacity. 2-post lifting frame with central lifting hook, weather protection roof, lockable battery box, E-stop, fire extinguisher.
Heavy-Duty Fuel Tank Skid with integrated 1200L fuel tank.n2-Post Lifting Frame with central lifting hook for crane deployment.nWeather Protection Roof shields engine and controls.nSafety Features including lockable battery isolator, E-stop, fire extinguisher.nExhaust Heat Shield protects personnel.nTelemetry Ready with pre-wired remote monitoring.

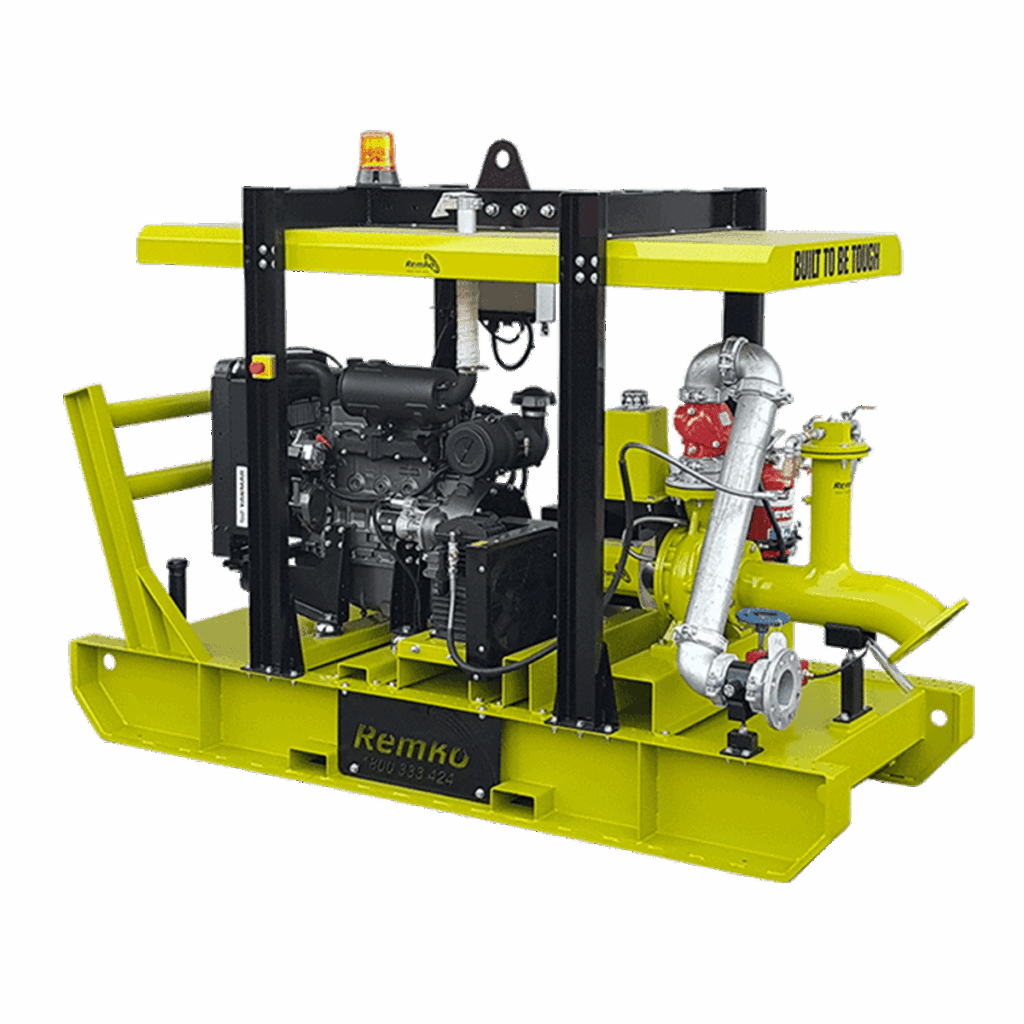

M1500 Mining Skid Pumpset
Extended Runtime Package
Extended runtime mine specification pumpset with 1500L fuel capacity. Designed for continuous operation in remote locations where refuelling intervals need to be maximised.
4000x1720x400mm heavy-duty fuel tank skid with 1500L diesel fuel capacity. 2-post lifting frame, weather protection roof, lockable battery box, E-stop, fire extinguisher, telemetry-ready.
Heavy-Duty Fuel Tank Skid with integrated 1500L fuel tank.n2-Post Lifting Frame with central lifting hook for crane deployment.nWeather Protection Roof shields engine and controls.nExtended Runtime with larger tank for remote operations.nSafety Features including lockable battery isolator, E-stop, fire extinguisher.nTelemetry Ready with pre-wired remote monitoring.
M2000 Mining Skid Pumpset
Heavy-Duty High Capacity Package
Heavy-duty mine specification pumpset with 2000L fuel capacity. Purpose-built for demanding, high-flow dewatering operations requiring maximum uptime.
5000x1920x400mm heavy-duty fuel tank skid with 2000L diesel fuel capacity. 2-post lifting frame, weather protection roof, lockable battery box, E-stop, fire extinguisher, telemetry-ready.
Heavy-Duty Fuel Tank Skid with integrated 2000L fuel tank.n2-Post Lifting Frame with central lifting hook for crane deployment.nWeather Protection Roof shields engine and controls.nHigh Capacity with large fuel reserve for 24/7 operations.nSafety Features including lockable battery isolator, E-stop, fire extinguisher.nTelemetry Ready with pre-wired remote monitoring.
M3000 Mining Skid Pumpset
Maximum Capacity Package
Maximum capacity mine specification pumpset with 3000L fuel tank. The largest in the mining series, engineered for the most demanding continuous dewatering operations.
5000x1920x500mm heavy-duty fuel tank skid with 3000L diesel fuel capacity. 2-post lifting frame, weather protection roof, lockable battery box, E-stop, fire extinguisher, telemetry-ready.
Heavy-Duty Fuel Tank Skid with integrated 3000L fuel tank.n2-Post Lifting Frame with central lifting hook for crane deployment.nWeather Protection Roof shields engine and controls.nMaximum Capacity with largest fuel reserve for ultimate runtime.nSafety Features including lockable battery isolator, E-stop, fire extinguisher.nTelemetry Ready with pre-wired remote monitoring.
Product Details
Typical Applications
- Mine dewatering (pit & underground)
- Tailings and slurry transfer
- Flood control and stormwater management
- Dust suppression supply
- Water transfer to/from dams or storage
Mining Series Diesel Pumpsets
Heavy-duty fuel tank skid with nudge bar, lockable battery isolator, emergency stop, fire extinguisher and safety features. Reinforced lifting frame with central lifting hook and forklift pockets.
Standard Inclusions
- • Heavy-duty fuel tank skid base
- • 2-post lifting frame (M1200+)
- • Weather protection roof
- • Forklift pockets (smaller skids)
- • 600L to 3000L fuel capacity
- • Lockable metal battery box
- • Battery isolator & E-stop
- • Exhaust heat shield
- • Fire extinguisher
- • Telemetry ready controller
- • Customisable configuration
Optional Extras
- + Remote telemetry system
- + Amber strobe/LED lights
- + Solar panel & charger
- + Additional E-stop switch
- + Float/level control
- + Flowmeter
- + Quick fill refuelling
Available Pump Models
41 pump models available for mining applications. Contact us for spec sheets and configuration options.
| Model | Flow (L/s) | Head (m) | Solids (mm) | Size (mm) | Spec |
|---|---|---|---|---|---|
| RA 20/80 SS | 29 | 105 | 25 | 100×100 | |
| RA 30/100 CR | 55 | 175 | — | 100×100 | |
| RA 30/150 CR | 55 | 170 | — | 125×80 | |
| RA 40/30 SS | 66 | 53 | 45 | 100×100 | |
| RA 40/120 CR | 55 | 170 | — | 125×80 | |
| RA 40/200 CA | 50 | 244 | 19 | 100×100 | |
| RA 50/30 SP | 95 | 46 | 76 | 100×100 | |
| RA 50/40 SI | 65 | 50 | 75 | 150×100 | |
| RA 60/80 CR | 95 | 152 | — | 125×100 | |
| RA 60/120 CR | 78 | 142 | — | 125×100 | |
| RA 70/90 CR | 95 | 152 | — | 125×100 | |
| RA 80/40 CR | 150 | 85 | — | 150×150 | |
| RA 80/120 CR | 130 | 128 | — | 150×125 | |
| RA 80/160 CP | 100 | 200 | 22 | 150×100 | |
| RA 80/180 CA | 100 | 200 | 25 | 150×100 | |
| RA 90/50 SP | 130 | 70 | 75 | 150×100 | |
| RA 100/30 SI | 135 | 48 | 75 | 150×150 | |
| RA 100/30 SS | 163 | 43 | 77 | 150×150 | |
| RA 100/60 CI | 175 | 115 | — | 150×150 | |
| RA 100/60 SI | 115 | 80 | 75 | 150×150 | |
| RA 100/100 CR | 130 | 128 | — | 150×125 | |
| RA 120/40 SS | 173 | 60 | 77 | 150×150 | |
| RA 120/80 CI | 180 | 120 | — | 150×125 | |
| RA 140/30 SI | 220 | 55 | 75 | 200×200 | |
| RA 150/40 SS | 220 | 63 | 80 | 200×200 | |
| RA 150/130 CI | 210 | 150 | — | 200×150 | |
| RA 160/50 CR | 300 | 56 | — | 250×200 | |
| RA 160/90 CA | 200 | 110 | — | 200×150 | |
| RA 180/30 SI | 235 | 55 | 75 | 250×250 | |
| RA 180/120 CA | 226 | 156 | 19 | 200×150 | |
| RA 200/40 SP | 270 | 90 | 76 | 200×150 | |
| RA 200/180 CA | 260 | 195 | 51 | 200×200 | |
| RA 220/40 CR | 300 | 56 | — | 250×200 | |
| RA 250/80 CI | 320 | 95 | — | 250×200 | |
| RA 300/40 SI | 390 | 62 | 95 | 300×300 | |
| RA 300/100 CP | 350 | 140 | 33 | 250×200 | |
| RA 350/60 CI | 410 | 88 | — | 250×200 | |
| RA 400/60 CI | 440 | 95 | — | 300×200 | |
| RA 400/90 CI | 520 | 135 | — | 300×250 | |
| RA 400/120 SA | 542 | 180 | 100 | 300×250 | |
| RA 450/100 SA | 542 | 180 | 100 | 300×250 |
