Remko RWPP Series Wellpoint Dewatering Pumps
Wellpoint dewatering pumps remove groundwater to temporarily reduce the water table, enabling dry
conditions for underground construction, tunnelling, trenching, civil engineering and renovation works.
Piston pumps work on the positive displacement principle, pushing extracted groundwater to the discharge point. These pumps are optimised for shallow excavation sites where a series of small-diameter wellpoints must continuously draw water to maintain a safe, dry work zone. One of their main advantages is the ability to pump both water and air. In wellpointing, lowering the groundwater level often draws in large volumes of air. This capability, combined with their ability to run dry indefinitely, makes piston pumps particularly well-suited for wellpointing applications.

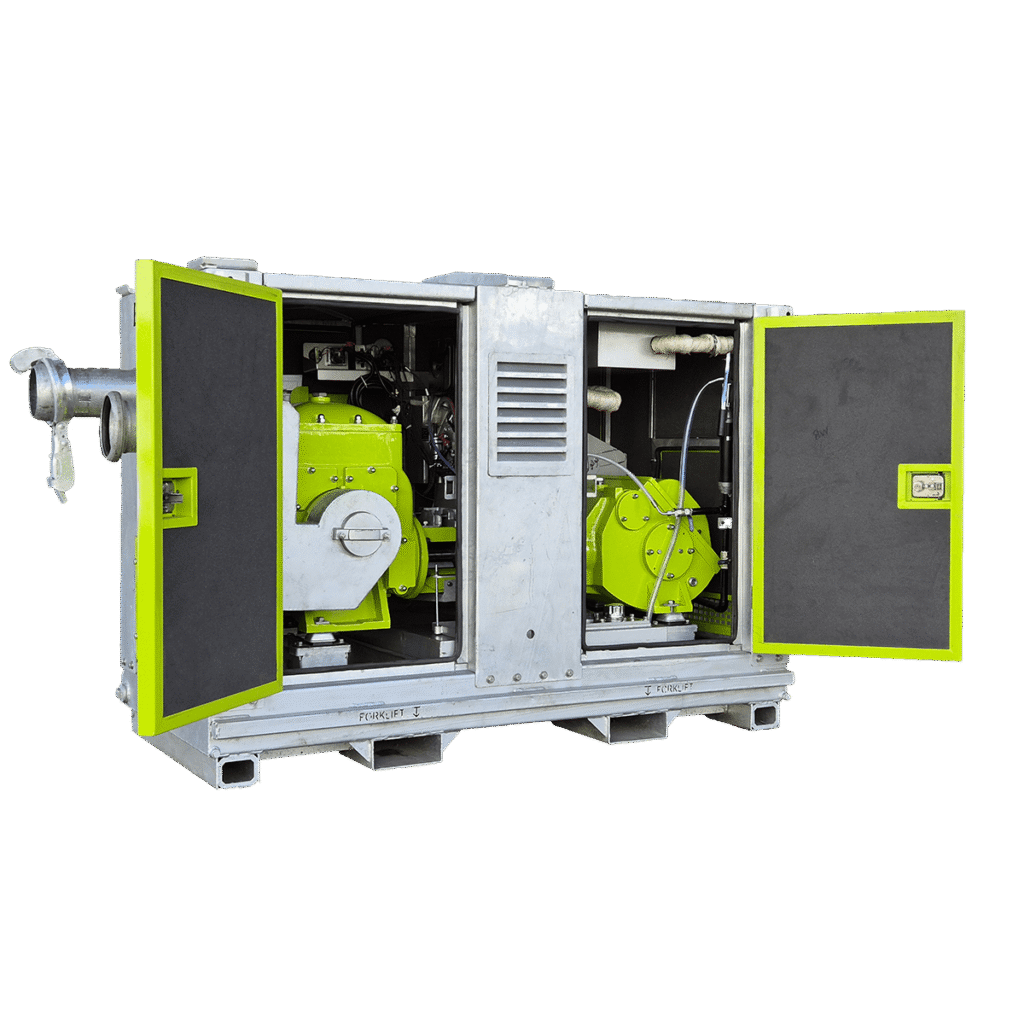

The Remko diesel driven Wellpoint Dewatering Piston Pump (RWPP) is a cost-effective solution for construction dewatering, mine site dewatering and ground water level control. The extremely quiet canopy is also ideally suited for densely populated areas where noise and safety levels are important. Featuring a highefficiency piston mechanism and reliable vacuum draw, Remko's unit is compact, mobile, and capable of handling entrained air, sandy water, and suspended fine solids without the performance issues typical of conventional centrifugal systems.
Browse Wellpoint Dewatering

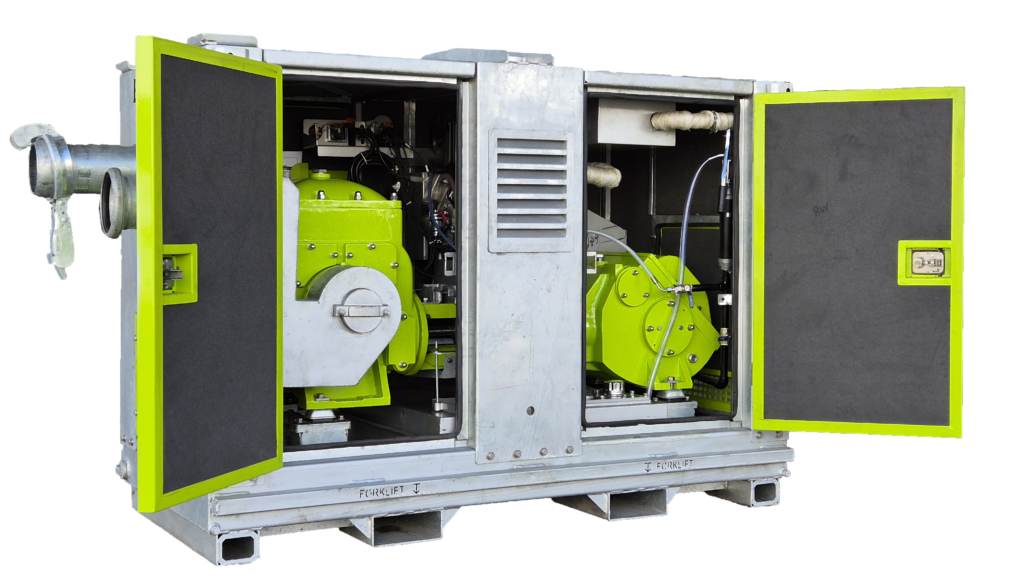

RWPP-100 – Wellpoint Dewatering Pump (100mm)
A compact, high-vacuum piston pump designed for small-to-medium
Wellpoint systems and trench dewatering applications Pump Size 100 mm Flow (max) 35 m³/hr (9.7 L/sec or 583 LPM) Suction Lift (max) Up to 9.5 m Head (max) 27 m
No Priming Required: No need of Priming System. It’s a self-prime pump. Has excellent suction capabilities on all type of flows. Less power required and saved running costs. It can also run dry. Easy to replace wear parts, the system has a long life and durability. Cleaning and Maintenance Windows: Additional window is provided on the pump body which allows easy cleaning & maintenance of valves, cylinder and stuffing boxes. Cylinder Liners: Fully machined stainless steel cylinder liners can be rotated for extended service life. Rotating and exchanging the cylinders is simple and easy when servicing the pumps. Gear and Lubrication Design: The Gear Drive is designed for lesser noise and automatically lubricate the bearings, connecting pins, pistons, and gears. Valve System: The valve system is provided which allows quick and easy dismantling of piston rods which are fully SS. Optional Stone Catcher: This optional stone catcher protects the pump inte als from any suspended solids. The stone catcher has easy access cleaning covers and is made of hot dip galvanized steel.
RWPP-150 – Wellpoint Dewatering Pump (150mm)
A high-capacity wellpoint pump built for large civil works and long wellpoint
Installations requiring deep drawdown and stage groundwater control. Pump Size 150 mm Flow (max) 90 m³/hr (25 L/sec or 1500 LPM) Suction Lift (max) Up to 9.5 m Head (max) 27 m
No Priming Required: No need of Priming System. It’s a self-prime pump. Has excellent suction capabilities on all type of flows. Less power required and saved running costs. It can also run dry. Easy to replace wear parts, the system has a long life and durability. Cleaning and Maintenance Windows: Additional window is provided on the pump body which allows easy cleaning & maintenance of valves, cylinder and stuffing boxes. Cylinder Liners: Fully machined stainless steel cylinder liners can be rotated for extended service life. Rotating and exchanging the cylinders is simple and easy when servicing the pumps. Gear and Lubrication Design: The Gear Drive is designed for lesser noise and automatically lubricate the bearings, connecting pins, pistons, and gears. Valve System: The valve system is provided which allows quick and easy dismantling of piston rods which are fully SS. Optional Stone Catcher: This optional stone catcher protects the pump inte als from any suspended solids. The stone catcher has easy access cleaning covers and is made of hot dip galvanized steel.
