RTH Series Hi-Pressure Trash Pumps
The RTH Series delivers high-pressure performance for long-distance transfer and extreme lift applications. Designed for heavy-duty solids-handling, these self-priming pumps are ideal for mine dewatering, flood relief, and high-head construction or municipal needs. With sizes up to 150mm and pressure ratings exceeding 50 metres head, RTH units are trusted in critical applications where durability, solids-handling, and extended lift capacity are essential.
Browse RTH Series Hi-Pressure Trash Pumps

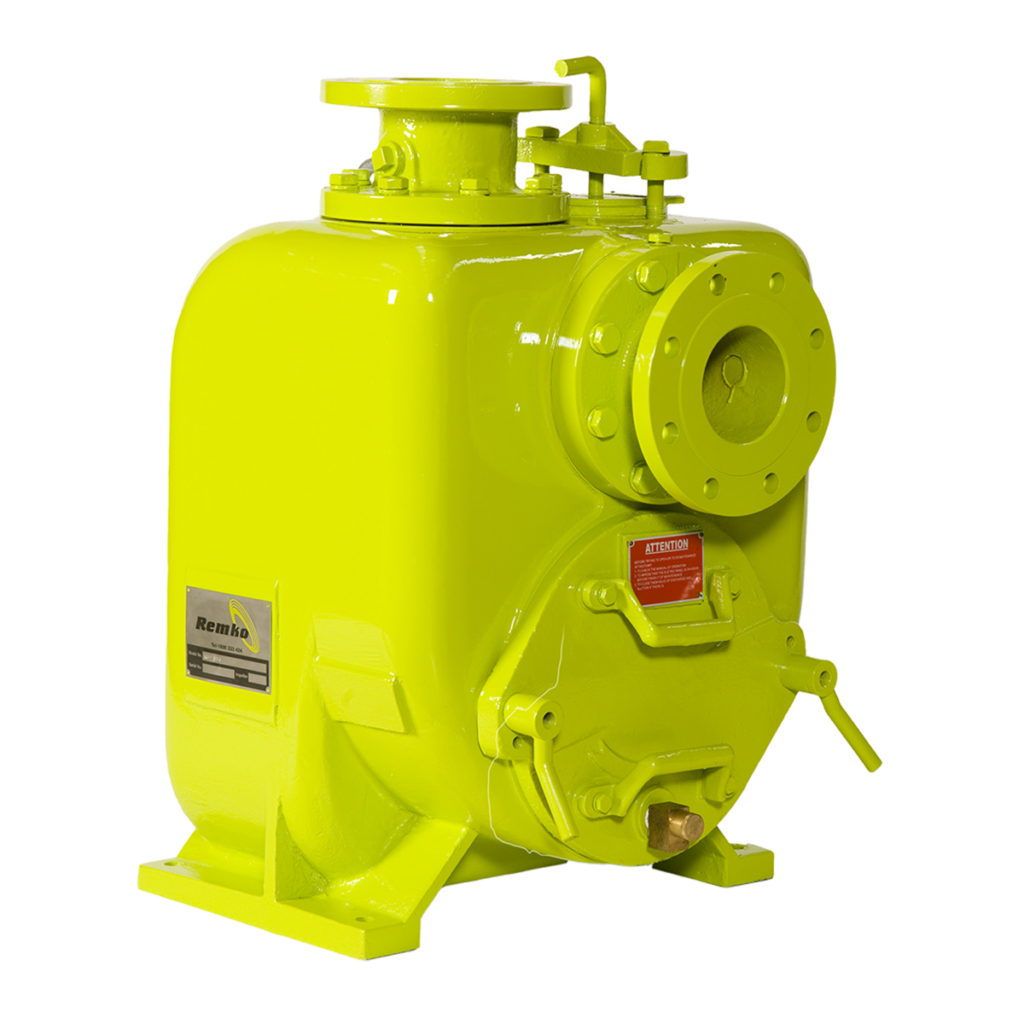

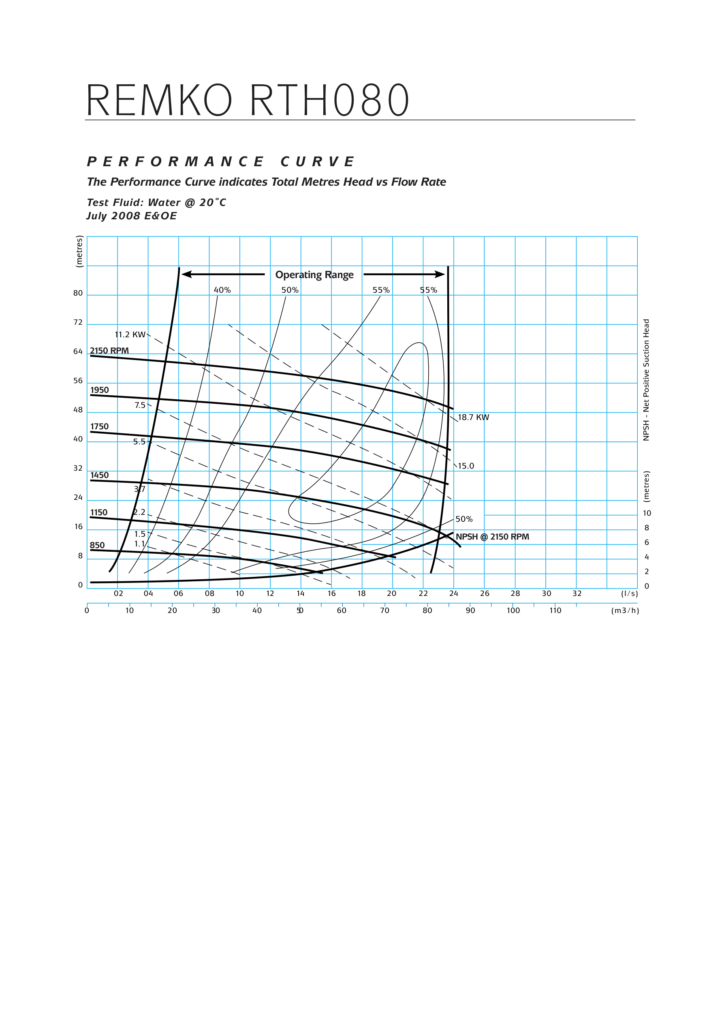

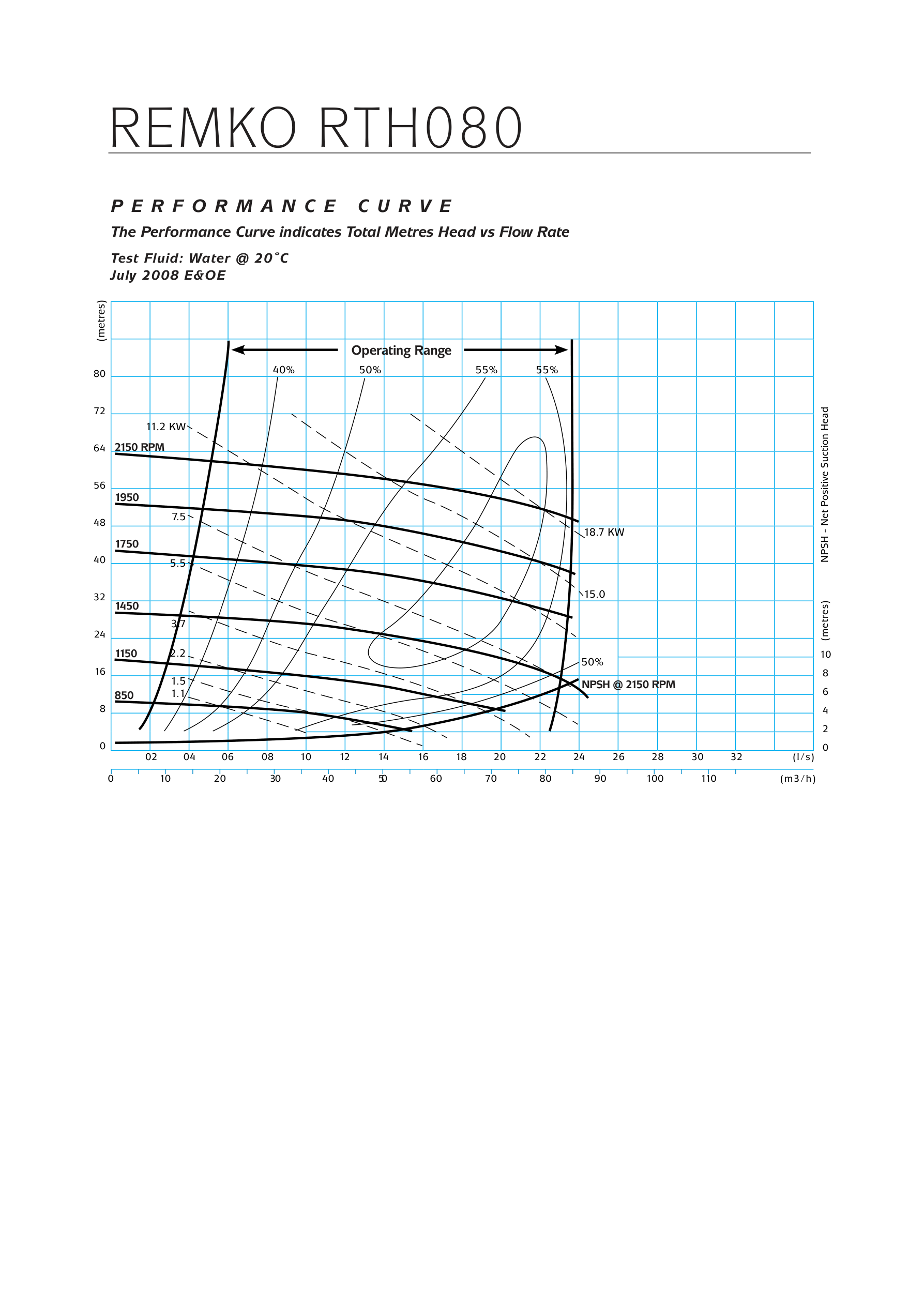

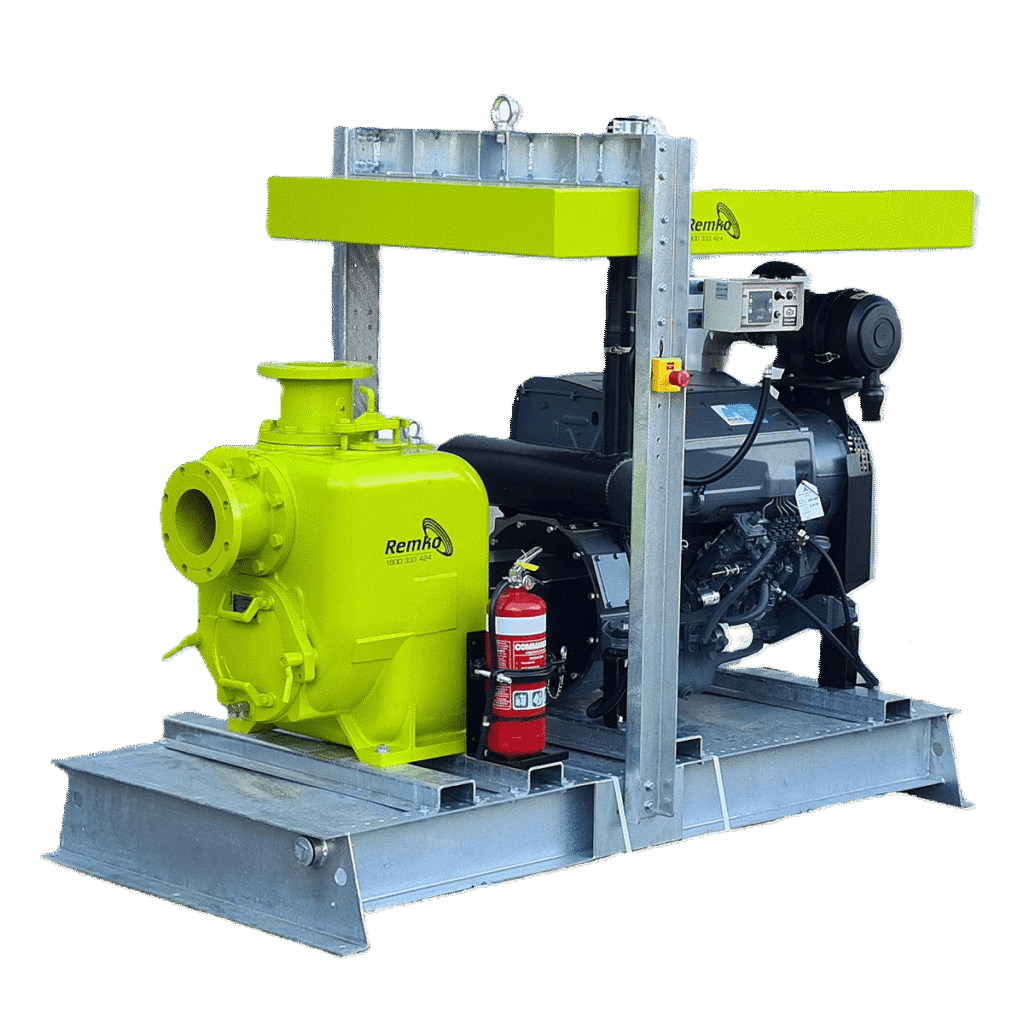

RTH080 - 80mm Hi-Pressure Trash Pump
Heavy duty self-priming centrifugal trash pump
Hi-pressure self-priming trash pump with 80mm ports, 23 L/s max flow, 62m max head, and 20mm solids handling capability.
| Pump Size | 80 x 80 mm |
| Flow (max) | 23 L/s |
| Head (max) | 62 metres |
- Large volume displacement to allow reprime in an open system
- Ability to handle air, overcoming vapour handling problems common in conventional centrifugal pumps
- Superior solids handling multi-vane impeller
- Self-aligning oil lubricated mechanical seal
- Substantial bearings and drive shaft
- Removable oil filled rotating assembly
- Removable inspection cover provides quick access to pump interior

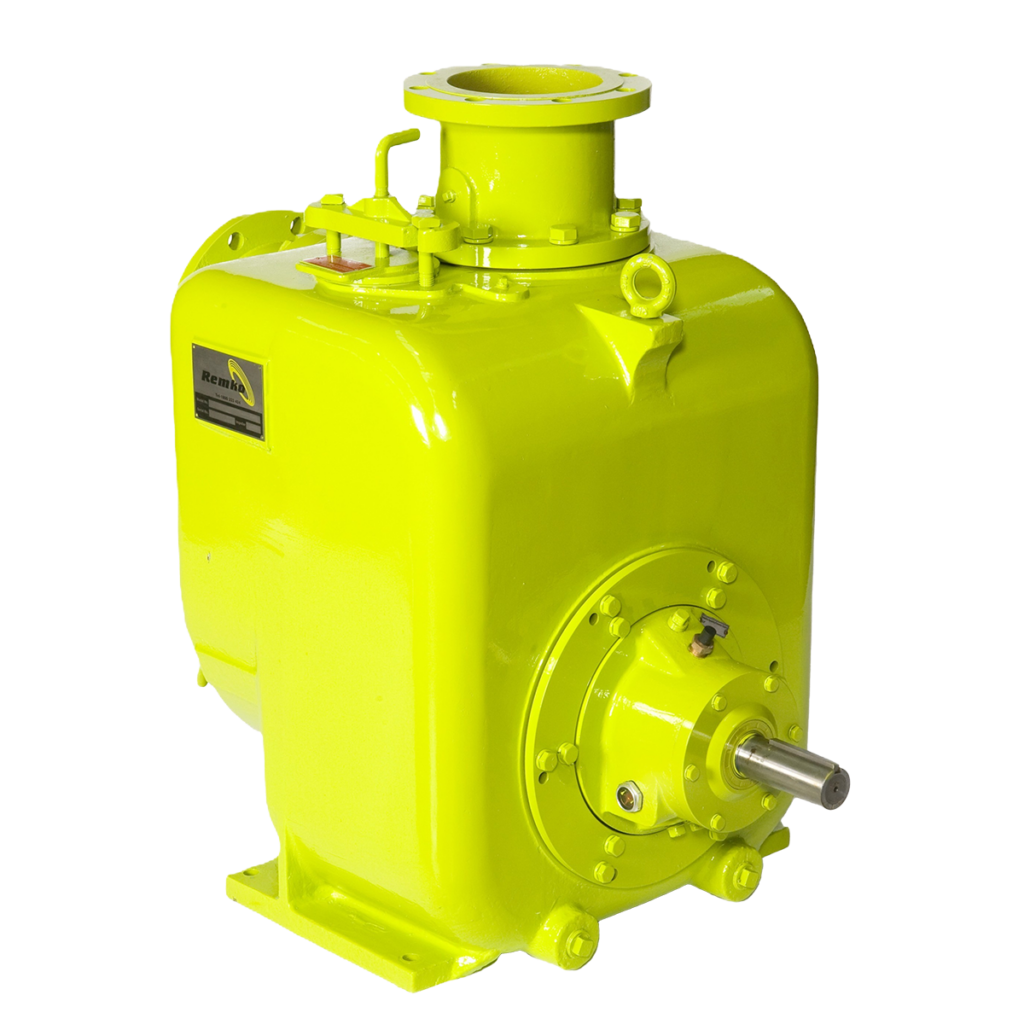

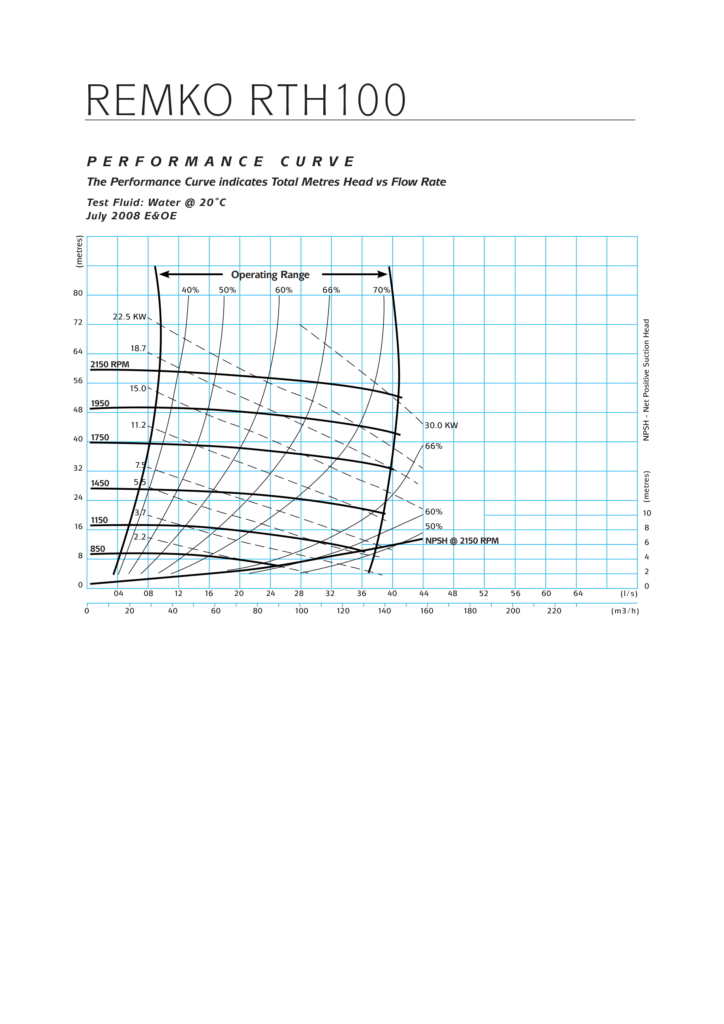

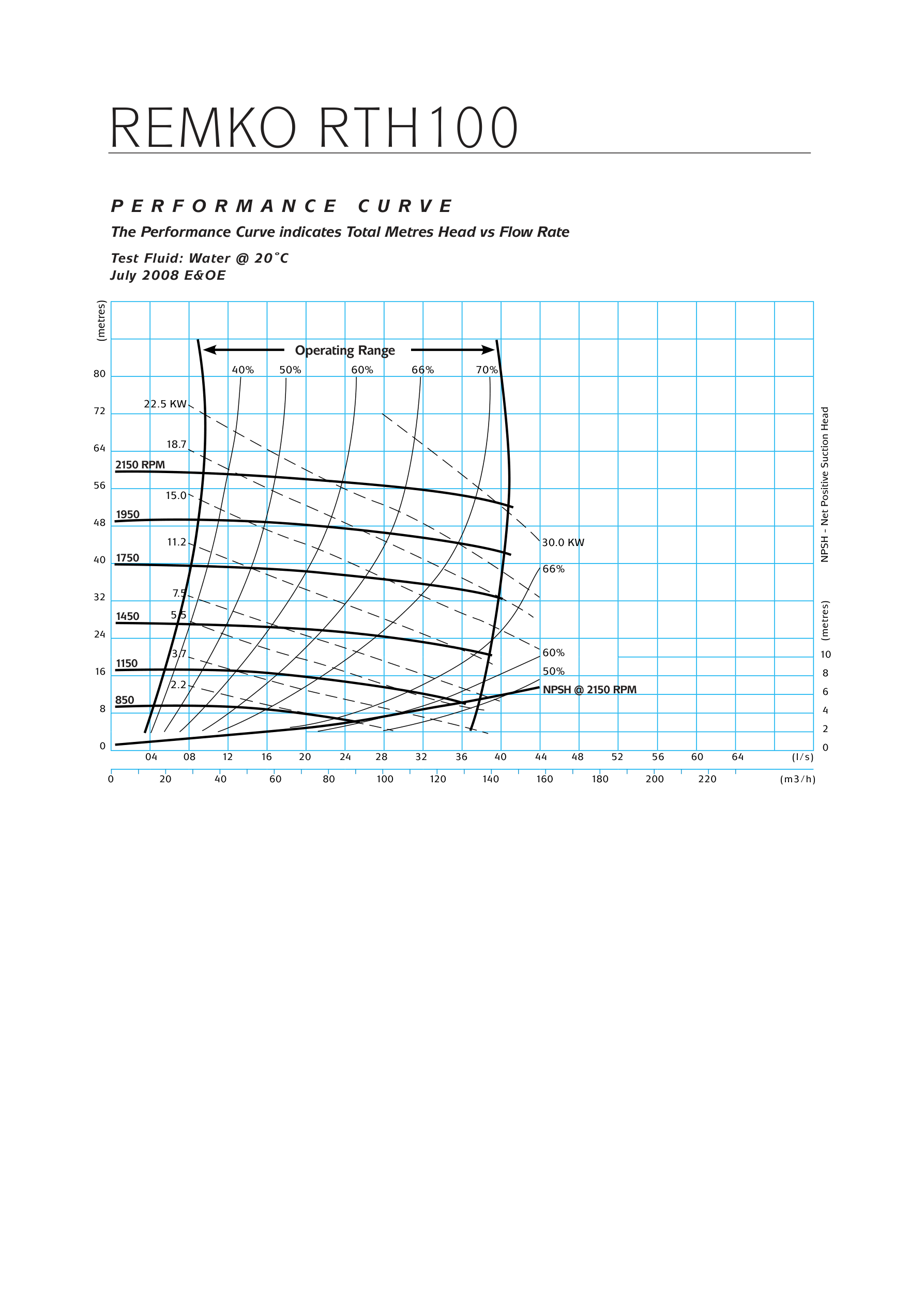

RTH100 - 100mm Hi-Pressure Trash Pump
Heavy duty self-priming centrifugal trash pump
Hi-pressure self-priming trash pump with 100mm ports, 40 L/s max flow, 59m max head, and 28mm solids handling capability.
| Pump Size | 100 x 100 mm |
| Flow (max) | 40 L/s |
| Head (max) | 59 metres |
- Large volume displacement to allow reprime in an open system
- Ability to handle air, overcoming vapour handling problems common in conventional centrifugal pumps
- Superior solids handling multi-vane impeller
- Self-aligning oil lubricated mechanical seal
- Substantial bearings and drive shaft
- Removable oil filled rotating assembly
- Removable inspection cover provides quick access to pump interior

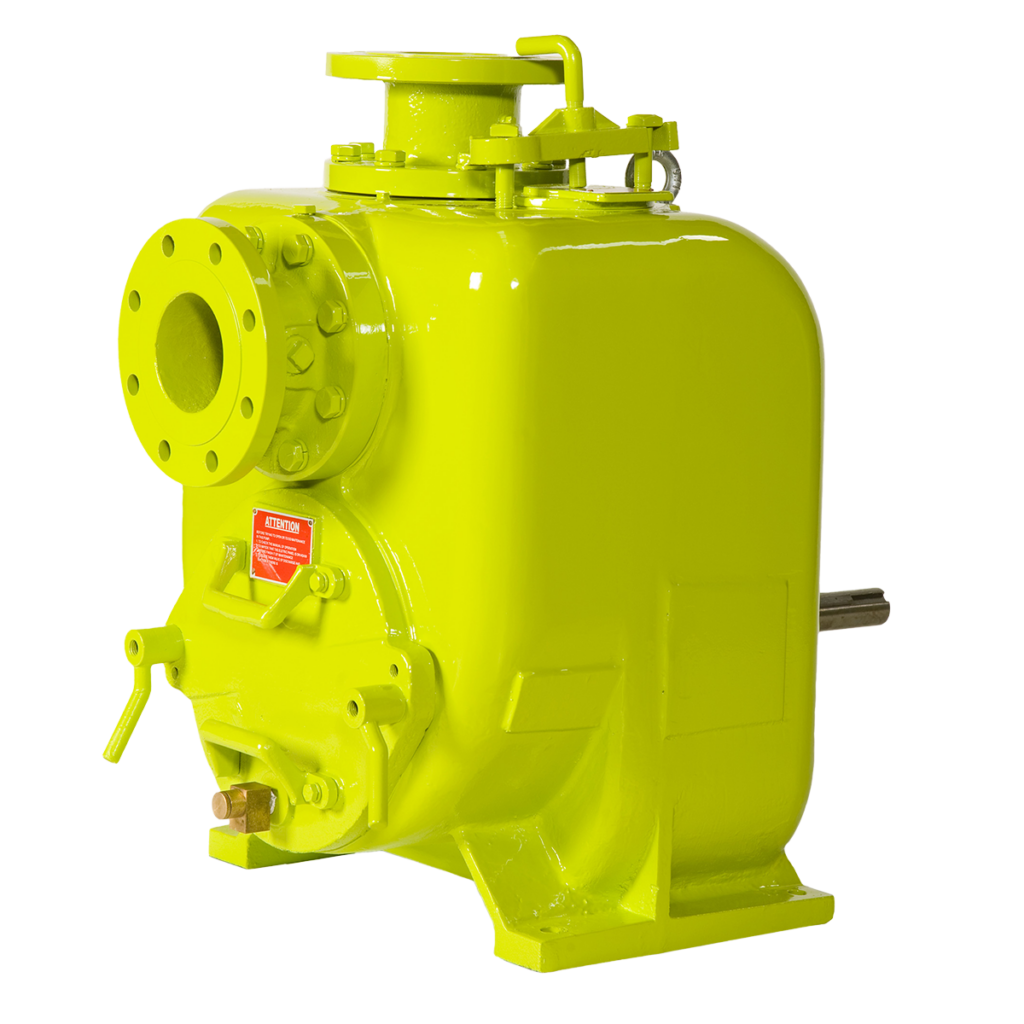

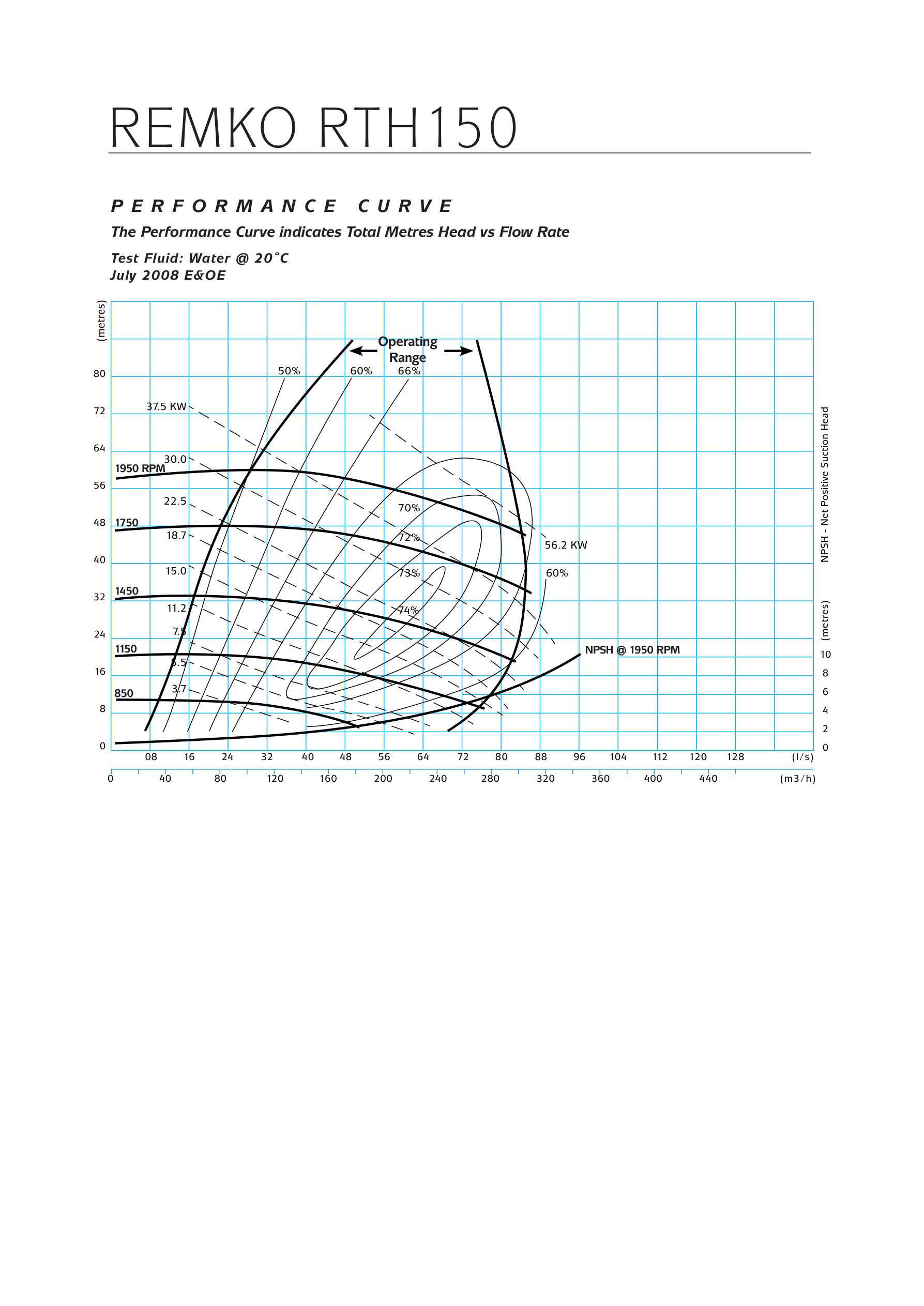

RTH150 - 150mm Hi-Pressure Trash Pump
Heavy duty self-priming centrifugal trash pump
Hi-pressure self-priming trash pump with 150mm ports, 84 L/s max flow, 58m max head, and 31mm solids handling capability.
| Pump Size | 150 x 150 mm |
| Flow (max) | 84 L/s |
| Head (max) | 58 metres |
- Large volume displacement to allow reprime in an open system
- Ability to handle air, overcoming vapour handling problems common in conventional centrifugal pumps
- Superior solids handling multi-vane impeller
- Self-aligning oil lubricated mechanical seal
- Substantial bearings and drive shaft
- Removable oil filled rotating assembly
- Removable inspection cover provides quick access to pump interior
Frequently Asked Questions
The RTH Series is a range of high-pressure self-priming centrifugal trash pumps designed for applications requiring significantly greater discharge head than standard trash pumps. While the RT Series focuses on high solids handling, the RTH Series delivers heads exceeding 50 metres, making it ideal for deep mine dewatering and long-distance transfer.
