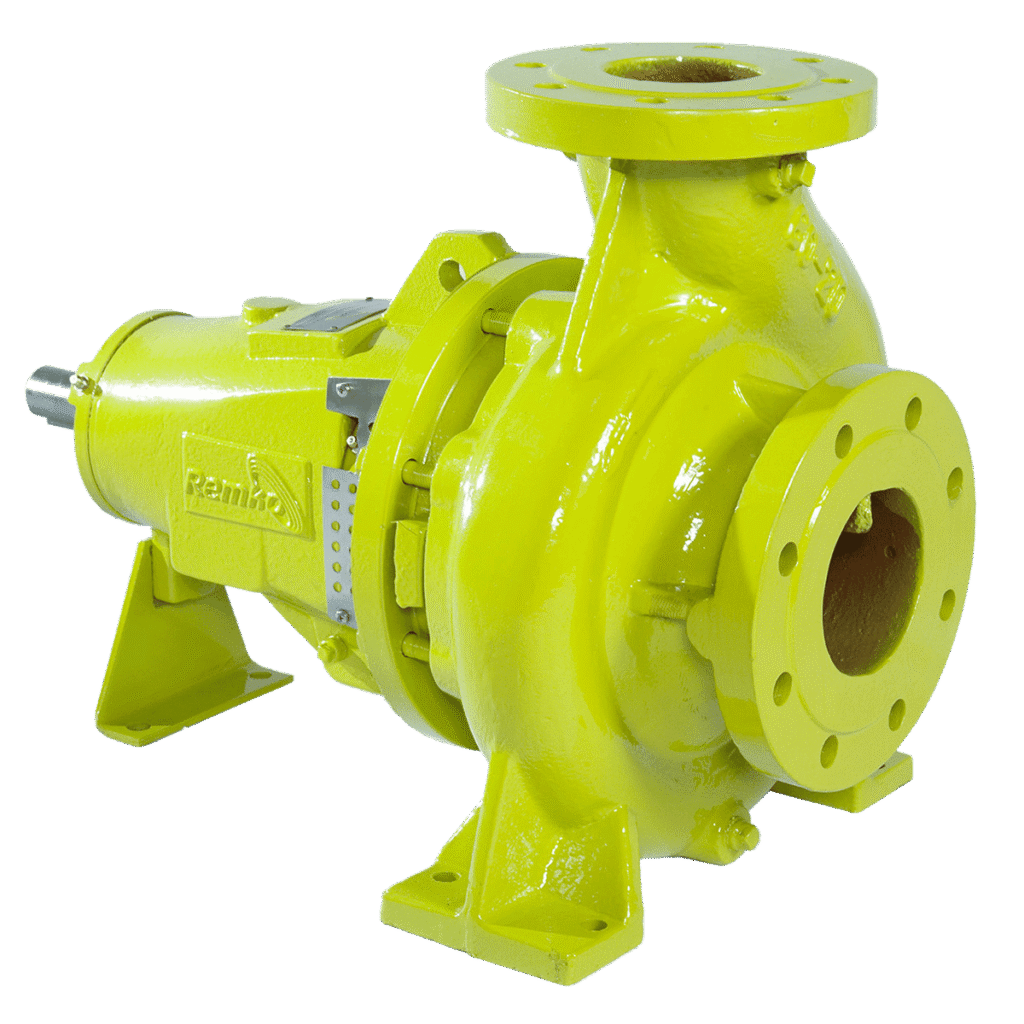

Remko RC DIN Series End Suction Centrifugal Pumps
Available in a wide range of configurations and material options, Remko's RC DIN centrifugal pumps are designed to deliver reliable, high-volume flow in commercial and industrial settings. These pumps conform to DIN 24255 standard and are suited to both fixed installations and packaged systems.
The Remko RC DIN Series is comprised of 41 standard sizes. Pumps with different impeller diameters and speeds are available to satisfy various performance ranges.
Summary Specifications
| Discharge Sizes | 32 mm to 250 mm |
| Max Flow | Up to 300 L/s |
| Max Head | Up to 160 metres |
| Operating Temperature | Standard: 0-100 °C; with special seals, up to ~140 °C |
| Pump Standard | DIN 24255 (End suction centrifugal) |
| Seal Options | Mechanical seal or packed gland seal |
| Pumped Liquid | Clean Water |
| Operating Pressure | Up to 16 bar |
Typical Applications
- ● Irrigation & water transfer
- ● Building services & HVAC systems
- ● Chemical & industrial process flow
- ● Food, beverage & pharmaceutical fluid handling
- ● Commercial & Leisure
- ● Dust suppression in mining & quarries
- ● Mining & Quarries
Available Models
We reserve the right to change the specifications without notice
| Pump Model | Suction x Discharge (mm) | Max. Impeller Diameter (mm) | Shaft Diameter (mm) | Pump Weight (kg) |
|---|---|---|---|---|
| RC32/13 | 50 x 32 | 139 | 24 | 27 |
| RC32/16 | 50 x 32 | 174 | 24 | 35 |
| RC 32/20 | 50 x 32 | 214 | 24 | 41 |
| RC 32/26 | 50 x 32 | 264 | 24 | 59 |
| RC 40/13 | 65 x 40 | 139 | 24 | 30 |
| RC 40/16 | 65 x 40 | 174 | 24 | 36 |
| RC 40/20 | 65 x 40 | 214 | 24 | 44 |
| RC 40/26 | 65 x 40 | 264 | 24 | 61 |
| RC 40/32 | 65 x 40 | 329 | 32 | 96 |
| RC 50/13 | 65 x 50 | 139 | 24 | 34 |
| RC 50/16 | 65 x 50 | 174 | 24 | 38 |
| RC 50/20 | 65 x 50 | 214 | 24 | 46 |
| RC 50/26 | 65 x 50 | 264 | 24 | 63 |
| RC 50/32 | 65 x 50 | 329 | 32 | 95 |
| RC 65/13 | 80 x 65 | 139 | 24 | 39 |
| RC 65/16 | 80 x 65 | 174 | 24 | 43 |
| RC 65/20 | 80 x 65 | 214 | 24 | 52 |
| RC 65/26 | 80 x 65 | 264 | 32 | 82 |
| RC 65/32 | 80 x 65 | 329 | 32 | 100 |
| RC 80/16 | 100 x 80 | 174 | 24 | 54 |
| RC 80/20 | 100 x 80 | 214 | 32 | 71 |
| RC 80/26 | 100 x 80 | 264 | 32 | 91 |
| RC 80/32 | 100 x 80 | 329 | 32 | 104 |
| RC 80/40 | 125 x 80 | 409 | 42 | 155 |
| RC 100/16 | 125 x 100 | 174 | 32 | 80 |
| RC 100/20 | 125 x 100 | 214 | 32 | 85 |
| RC 100/26 | 125 x 100 | 264 | 32 | 106 |
| RC 100/32 | 125 x 100 | 329 | 32 | 116 |
| RC 100/40 | 125 x 100 | 409 | 42 | 177 |
| RC 125/20 | 150 x 125 | 214 | 32 | 112 |
| RC 125/26 | 150 x 125 | 264 | 32 | 110 |
| RC 125/32 | 150 x 125 | 329 | 42 | 151 |
| RC 125/40 | 150 x 125 | 409 | 42 | 188 |
| RC 150/20 | 200 x 150 | 214 | 32 | 154 |
| RC 150/26 | 200 x 150 | 264 | 42 | 152 |
| RC 150/32 | 200 x 150 | 329 | 42 | 170 |
| RC 150/40 | 200 x 150 | 409 | 42 | 205 |
| RC 200/32 | 250 x 200 | 329 | 48 | 254 |
| RC 200/40 | 250 x 200 | 409 | 48 | 350 |
| RC 250/32 | 300 x 250 | 329 | 48 | 370 |
| RC 250/40 | 300 x 250 | 409 | 55 | 390 |
