Diesel Driven Pumpsets
At Remko, we understand the pressures of site dewatering, slurry handling, stormwater bypass, irrigation, and dust suppression. Our diesel pumpsets are engineered to run in the toughest conditions: remote locations, abrasive fluids, and continuous operation.
Engineered for Demanding Environments
Remko's diesel-driven pumpsets are engineered for robust performance in demanding environments. These packages combine one of various Remko pumps with reliable diesel engines, tailored for various applications across mining, agriculture, construction, and industrial sectors.
Why Choose Diesel Pumps?
- No power supply needed
- High power output
- Remote site ready
Available Pump Models
Package Comparison
Choose the right package for your application
| Feature |
AG Series
General Purpose
|
AG Plus Series
Extended Runtime
|
Contractor Series
Large Pumps
|
Mining Series
Mine Spec
|
|---|---|---|---|---|
| Best For | General purpose | Extended runtime | Large pumps | Mine sites |
| Fuel Tank |
100-180L (external) |
160-320L (built-in) |
300-1200L (built-in) |
600-3000L (built-in) |
| Available Sizes | 700, 900 | 700, 900 | C300, C600, C900, C1200 | M600, M1200, M1500, M2000, M3000 |
| Frame Type | Galvanised lift frame | Galvanised lift frame | 4-post HD lift frame | 2-post reinforced |
| Weather Protection | Roof protection | Roof protection | Roof + heat shield | Full enclosure |
| Safety Features | Basic | Basic | Enhanced | Full MineSpec |
| Controller | K21 | K21 | K27 | K27 + Telemetry |
| Battery Isolator | Optional | Optional | Optional | |
| Emergency Stop | Optional | Optional | Optional | |
| Fire Extinguisher | Optional | Optional | Optional |
AG Series
General Purpose
The AG Plus package consists of a hot dip galvanised pump skid with lifting frame and roof. This package includes an integral fuel tank built into the pumpset base for extra run time between fills. All other features are same as our AG package.
100-180L (external)
AG Plus Series
Extended Runtime
The AG Plus package consists of a hot dip galvanised pump skid with lifting frame and roof. This package includes an integral fuel tank built into the pumpset base for extra run time between fills. All other features are same as our AG package.
160-320L (built-in)
Contractor Series
Large Pumps
The Remko Contractor Packages are built tough mainly for larger or auto prime pumps. These packages include a heavy-duty fuel tank skid base with lifting frame and adjustable lifting point. Also includes forklift pockets for easy handling at site.
300-1200L (built-in)
Mining Series
Mine Spec
Remko Mining Packages are built tough for demanding Australian mine sites. They come fully equipped with heavy-duty fuel tank skid with nudge bar, lockable battery isolator, emergency stop, fire extinguisher and other safety features. The reinforced lifting frame consists of a central single lifting hook with adjustable lifting point. Also includes forklift pockets for easy handling at site.
600-3000L (built-in)

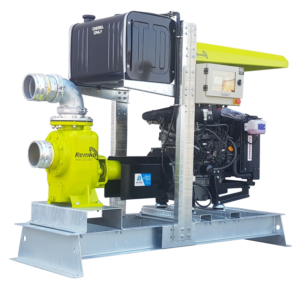

RS Series Self-Prime Pumpset
Versatile, site-ready pumping systems designed for fast deployment and tough field conditions.
The Remko RS Series self-priming trash pumps are compact and reliable, designed for efficient handling of water and light solids in civil and industrial applications. These pumps feature a wet self-priming centrifugal design - once initially primed with water, an RS pump will re-prime itself automatically during operation.
Key Features
- Durable construction for harsh environments
- Easy maintenance and serviceability
- Flexible configuration options
Overview
The Remko RS Series self-priming trash pumps are compact and reliable, designed for efficient handling of water and light solids in civil and industrial applications. These pumps feature a wet self-priming centrifugal design - once initially primed with water, an RS pump will re-prime itself automatically during operation.
Why Choose the RS Series?
- Proven reliability in demanding Australian conditions
- Multiple package configurations to suit your operational needs
- Backed by Remko's expert technical support and nationwide service network
Performance Highlights
Technical Specifications
| Pump Model | Flow (Max) | Head (Max) | Nominal | Prime Lift | Speed | Inlet Outlet |
|---|---|---|---|---|---|---|
| RS-080 | 20 l/s | 25m | 15 l/s @ 20m | 5m | 2200 rpm | 3" x 3" (80mm) |
| RS-100 | 45 l/s | 52m | 30 l/s @ 25m | 5m | 2400 rpm | 4" x 4" (100mm) |
| RS-150 | 110 l/s | 62m | 70 l/s @ 20m | 5m | 2200 rpm | 6" x 6" (150mm) |
| RS-200 | 135 l/s | 48m | 115 l/s @ 15m | 5m | 2200 rpm | 8" x 8" (200mm) |
Typical Applications
Available Package Options
The RS Series is available in the following package configurations. Each package is engineered for specific operational requirements and site conditions.
Downloads
Contact Remko sales team for further information.

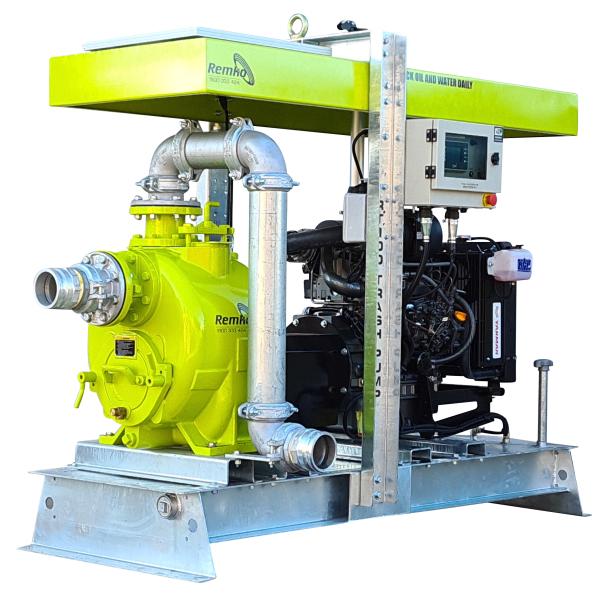

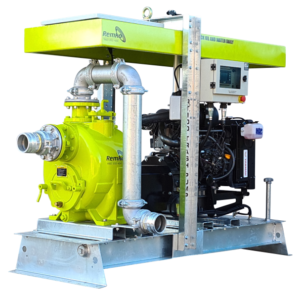

RT Series Heavy Duty Trash Pumpset
Built to be tough. Proven to perform.
The Remko RT Series is a range of high solids handling self-priming trash pumps engineered for heavy-duty dewatering, trade waste, construction runoff, and abrasive site conditions. Available in 50mm to 250mm sizes, these pumps are rugged, low-maintenance, and designed for maximum uptime.
Key Features
- High solids handling capability
- Rugged construction for abrasive conditions
- Low-maintenance design for maximum uptime
Overview
The Remko RT Series is a range of high solids handling self-priming trash pumps engineered for heavy-duty dewatering, trade waste, construction runoff, and abrasive site conditions. Available in 50mm to 250mm sizes, these pumps are rugged, low-maintenance, and designed for maximum uptime.
Why Choose the RT Series?
- Proven reliability in demanding Australian conditions
- Multiple package configurations to suit your operational needs
- Backed by Remko's expert technical support and nationwide service network
Performance Highlights
Technical Specifications
| Pump Model | Flow (Max) | Head (Max) | Nominal | Solids | Prime Lift | Speed | Inlet Outlet |
|---|---|---|---|---|---|---|---|
| RT-050 | 13 l/s | 36m | 12 l/s @ 20m | 44mm | 7.6m | 2900 rpm | 2" x 2" (50mm) |
| RT-080 | 29 l/s | 36m | 25 l/s @ 25m | 63mm | 7.6m | 2150 rpm | 3" x 3" (80mm) |
| RT-100 | 45 l/s | 36m | 40 l/s @ 22m | 76mm | 7.6m | 1950 rpm | 4" x 4" (100mm) |
| RT-150 | 92 l/s | 33m | 72 l/s @ 18m | 76mm | 7.6m | 1550 rpm | 6" x 6" (150mm) |
| RT-200 | 165 l/s | 33m | 100 l/s @ 20m | 76mm | 7.0m | 1350 rpm | 8" x 8" (200mm) |
| RT-250 | 210 l/s | 38m | 160 l/s @ 30m | 76mm | 7.0m | 1450 rpm | 10" x 10" (250mm) |
Typical Applications
Available Package Options
The RT Series is available in the following package configurations. Each package is engineered for specific operational requirements and site conditions.
Downloads
Contact Remko sales team for further information.

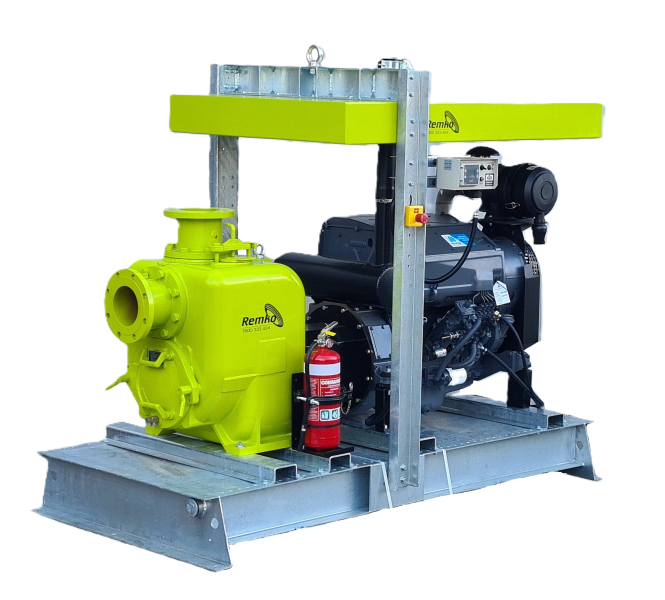

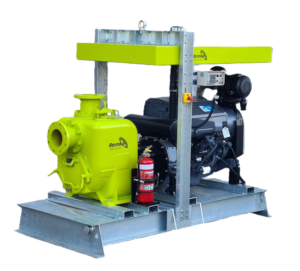

RTH Series Heavy Duty High Pressure Pumpset
Engineered for high head. Built for harsh environments.
The RTH Series delivers high-pressure performance for long-distance transfer and extreme lift applications. Designed for heavy-duty solids-handling, these self-priming pumps are ideal for mine dewatering, flood relief, and high-head construction or municipal needs.
Key Features
- High-pressure capability for long-distance transfer
- Extreme lift performance
- Heavy-duty solids handling
Overview
The RTH Series delivers high-pressure performance for long-distance transfer and extreme lift applications. Designed for heavy-duty solids-handling, these self-priming pumps are ideal for mine dewatering, flood relief, and high-head construction or municipal needs.
Why Choose the RTH Series?
- Proven reliability in demanding Australian conditions
- Multiple package configurations to suit your operational needs
- Backed by Remko's expert technical support and nationwide service network
Performance Highlights
Technical Specifications
| Pump Model | Flow (Max) | Head (Max) | Nominal | Solids | Prime Lift | Speed | Inlet Outlet |
|---|---|---|---|---|---|---|---|
| RTH-080 | 23 l/s | 62m | 20 l/s @ 50m | 20mm | 7.6m | 2150 rpm | 4" x 4" (100mm) |
| RTH-100 | 40 l/s | 59m | 36 l/s @ 48m | 28mm | 7.6m | 2150 rpm | 6" x 6" (150mm) |
| RTH-150 | 84 l/s | 58m | 72 l/s @ 48m | 31mm | 7.6m | 1950 rpm | 8" x 8" (200mm) |
Typical Applications
Available Package Options
The RTH Series is available in the following package configurations. Each package is engineered for specific operational requirements and site conditions.
Downloads
Contact Remko sales team for further information.

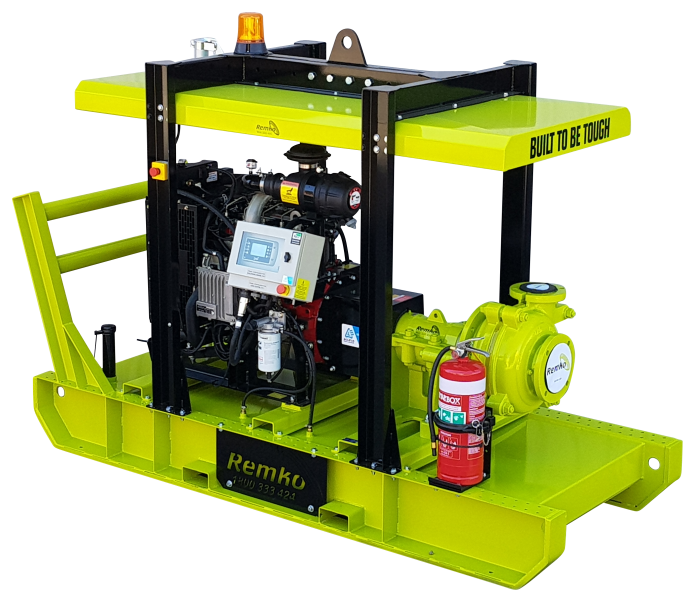

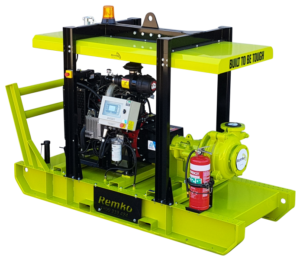

RC ISO Series End Suction Centrifugal Pumpset
Engineered for flow efficiency and industrial reliability.
Remko RC ISO centrifugal pumps are designed to deliver reliable, high-volume flow in commercial and industrial settings. These pumps conform to ISO 2858 standard and are suited to both fixed installations and packaged systems. Comprised of 29 standard sizes with different impeller diameters and speeds.
Key Features
- ISO 2858 standard compliance
- 29 standard sizes available
- High-volume flow efficiency
Overview
Remko RC ISO centrifugal pumps are designed to deliver reliable, high-volume flow in commercial and industrial settings. These pumps conform to ISO 2858 standard and are suited to both fixed installations and packaged systems. Comprised of 29 standard sizes with different impeller diameters and speeds.
Why Choose the RC ISO Series?
- Proven reliability in demanding Australian conditions
- Multiple package configurations to suit your operational needs
- Backed by Remko's expert technical support and nationwide service network
Performance Highlights
Technical Specifications
Technical specifications available upon request.
Typical Applications
Available Package Options
The RC ISO Series is available in the following package configurations. Each package is engineered for specific operational requirements and site conditions.
Downloads
Contact Remko sales team for further information.
RC DIN Series End Suction Centrifugal Pumpset
Engineered for flow efficiency and industrial reliability.
Remko RC DIN centrifugal pumps are designed to deliver reliable, high-volume flow in commercial and industrial settings. These pumps conform to DIN 24255 standard and are suited to both fixed installations and packaged systems. Comprised of 41 standard sizes.
Key Features
- DIN 24255 standard compliance
- 41 standard sizes available
- High-volume flow efficiency
Overview
Remko RC DIN centrifugal pumps are designed to deliver reliable, high-volume flow in commercial and industrial settings. These pumps conform to DIN 24255 standard and are suited to both fixed installations and packaged systems. Comprised of 41 standard sizes.
Why Choose the RC DIN Series?
- Proven reliability in demanding Australian conditions
- Multiple package configurations to suit your operational needs
- Backed by Remko's expert technical support and nationwide service network
Performance Highlights
Technical Specifications
Technical specifications available upon request.
Typical Applications
Available Package Options
The RC DIN Series is available in the following package configurations. Each package is engineered for specific operational requirements and site conditions.
Downloads
Contact Remko sales team for further information.

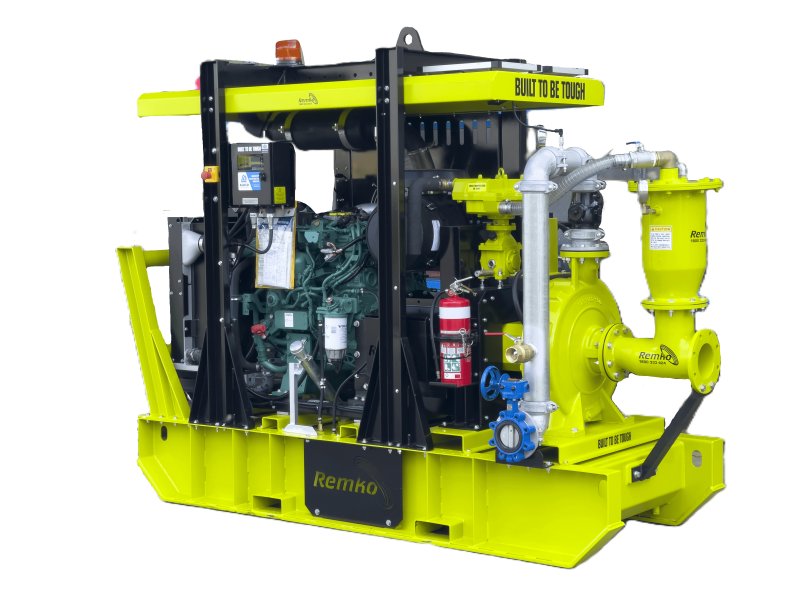

RA Series Auto Dry Prime Pumpset
Reliable. Efficient. Ready to Run.
Remko Automatic Dry Prime Pumps are designed for continuous, unattended operation in the toughest dewatering, construction, mining, and municipal applications. With advanced automatic priming systems, these pumps handle large suction lifts, long suction lines, and intermittent flows - all without manual intervention.
Key Features
- Automatic dry priming - No manual filling required
- Continuous operation without losing prime
- Robust build with wear-resistant components
- Flexible power options
- Low maintenance design
Overview
Remko Automatic Dry Prime Pumps are designed for continuous, unattended operation in the toughest dewatering, construction, mining, and municipal applications. With advanced automatic priming systems, these pumps handle large suction lifts, long suction lines, and intermittent flows - all without manual intervention.
Why Choose the RA Series?
- Proven reliability in demanding Australian conditions
- Multiple package configurations to suit your operational needs
- Backed by Remko's expert technical support and nationwide service network
Performance Highlights
Technical Specifications
Technical specifications available upon request.
Typical Applications
Available Package Options
The RA Series is available in the following package configurations. Each package is engineered for specific operational requirements and site conditions.
Downloads
Contact Remko sales team for further information.
Other Pumpset Types
Hydraulic Pumpsets
Powered by hydraulic systems for excavator and machine integration.
EXPLORE RANGE
